Elevator ButtonsRound

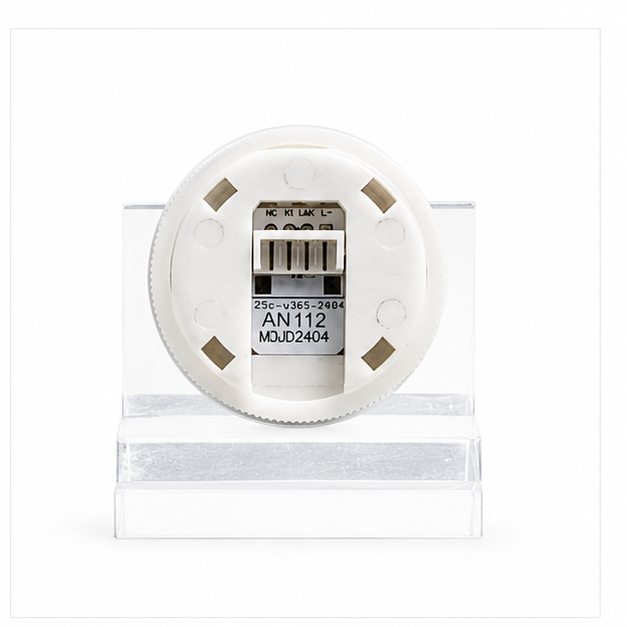

Mirror Glass Round Elevator Button

A round elevator push button with a mirror-finished glass character plate, printed character, stainless-steel bezel and injection-molded plastic housing.

Button Type
Mechanical Button
Cut-out Size
37.5 × 37.5 mm
Working Voltage
DC 24V
Light Color
White
Pin Count
4
PCB Model
AN112 MDJD2404
Send InquiryWhatsApp

Technical Specifications

Core installation and electrical information for this product configuration.

General

SpecificationValue
Button TypeMechanical Button
Cut-out Size37.5 × 37.5 mm
Working VoltageDC 24V
Light ColorWhite
Pin Count4
PCB ModelAN112 MDJD2404

Structure & Appearance

SpecificationValue
Surface DesignMirror Finish
Housing MaterialStainless-Steel Bezel + Injection-Molded Plastic
Surface FinishMirror Finish
Character MaterialGlass

PCB Options

PCB ModelVoltageTerminal ModelPin CountLED Color
AN112 MDJD2404DC 24VEH-W4White
